3.2 Metal based materials Pindrop

Target Level

4-5

Running Total

Attempt

1 of 3

Click on a top label, then click on its correct position on the diagram. Or, drag a top label and drop it onto the correct position. Position all the labels before clicking ‘Check’.

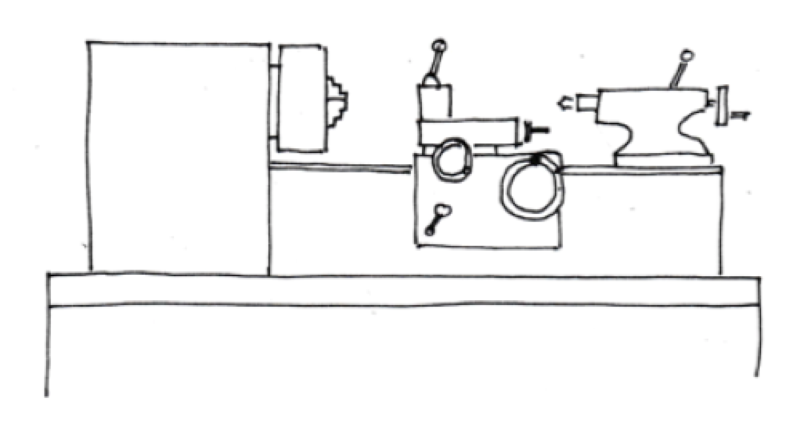

Label the different parts of the centre lathe.

Apron

Tool post

Cross slide

Headstock

Tail stock

Bed

Chuck

This is your 1^st attempt! You get 3 marks for each one you get right. Good luck!

Pass Mark

80%
