Distance-Time and Velocity-Time Graphs

Ok, Got It!

Your Turn!!

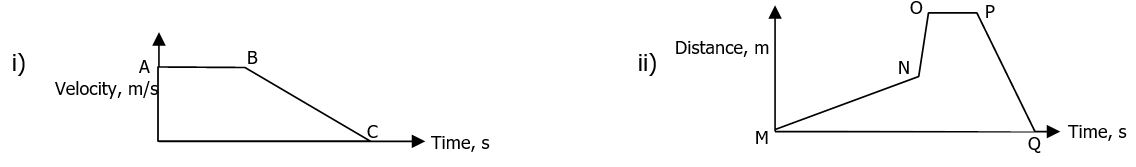

At which point in graph i) above is the object travelling fastest? π + − ÷ × < > ≤ ≥ π
Where in graph i) above is the acceleration (or deceleration) greatest? Between π + − ÷ × < > ≤ ≥ π and π + − ÷ × < > ≤ ≥ π
What is the distance travelled between A and B? π + − ÷ × < > ≤ ≥ π metres
At which stage in graph ii) above is the object travelling fastest? Between π + − ÷ × < > ≤ ≥ π and π + − ÷ × < > ≤ ≥ π

Get it right on the first attempt to mark it as done.

Ok, Done It!

Your Turn!! What happens as the object passes B in the velocity-time graph in i) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!

Your Turn!! What is happening between M and N in the distance-time graph in ii) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!

Your Turn!! What is happening between N and O in the distance-time graph in ii) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!

Ok, Got It!

RAPID TEST

Given the coordinates A(0, 100), B(50, 100), C(120, 0), calculate the distance travelled in graph i) above. π + − ÷ × < > ≤ ≥ π metres
In graph ii) above, when is the object travelling fastest? Between π + − ÷ × < > ≤ ≥ π and π + − ÷ × < > ≤ ≥ π

Get it right on the first attempt to mark it as done.

Ok, Done It!

RAPID TEST - What is happening between A and B in the velocity-time graph in i) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!

RAPID TEST - What is happening between B and C in the velocity-time graph in i) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!

RAPID TEST - What is happening between O and P in the distance-time graph in ii) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!

RAPID TEST - What is happening between P and Q in the distance-time graph in ii) above?

Get it right on the first attempt to mark it as done.

Ok, Done It!
